SATIR CK350-W – IR Temperature Measurement Camera for Monitoring

The SATIR CK350-W is an infrared temperature measurement camera for precise control and monitoring external facilities such as substations.

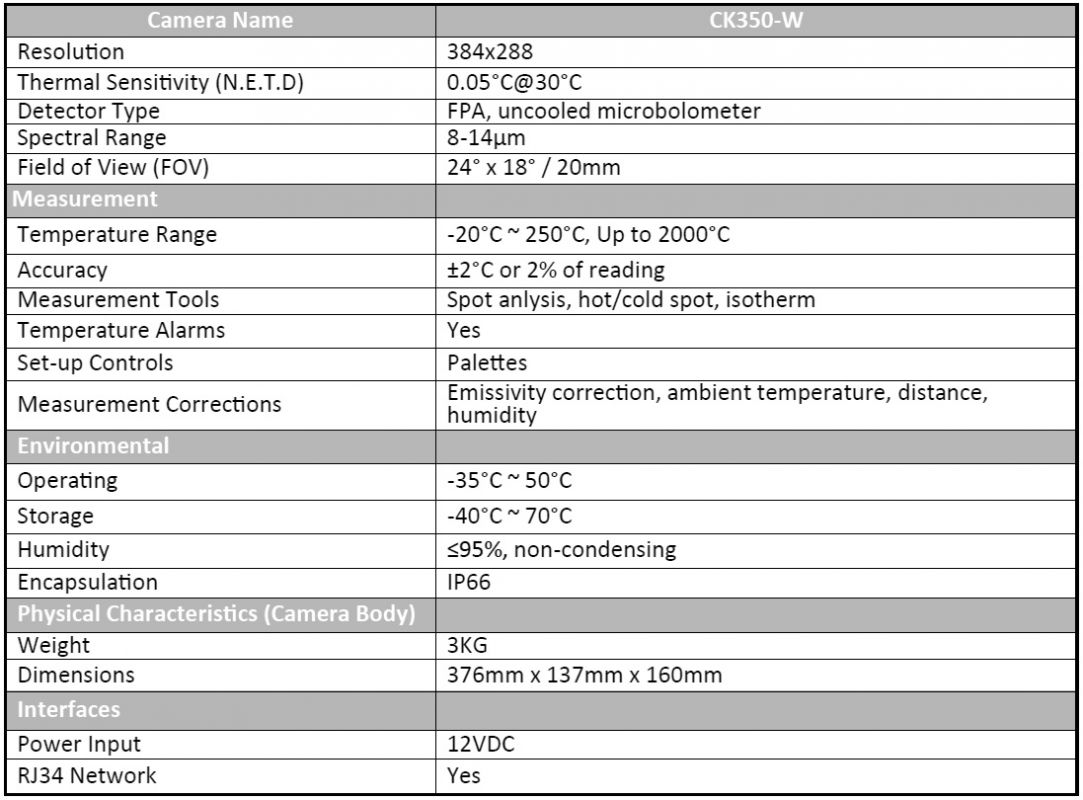

The CK350-W has a 384x288 IR detector which generates 110592 pixels to give a clear, detailed visual. The CK350-W has a wide temperature range of -20~250°C, up to 2000°C with a temperature measurement accuracy of ±2°C or 2% of a reading.

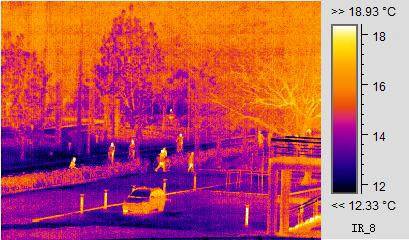

The CK350-W has a temperature alarm, meaning the user can set the alarm to activate when a certain a certain temperature is reached in the environment. The CK350-W has powerful analysis functions such as spot, profiles, area and isotherm analysis. The CK350-W is has a detection range of a vehicle at 1,000 metres and detection range of a persons at 330 metres. The CK350-W is enabled for Wi-fi connection due it’s RJ-45 connection which allows for temperature data and thermal video transfer.
The CK350-W comes equipped with NVS System software which supports real time analysis, alarms, reporting, and replaying of radiometric thermal video on a PC.

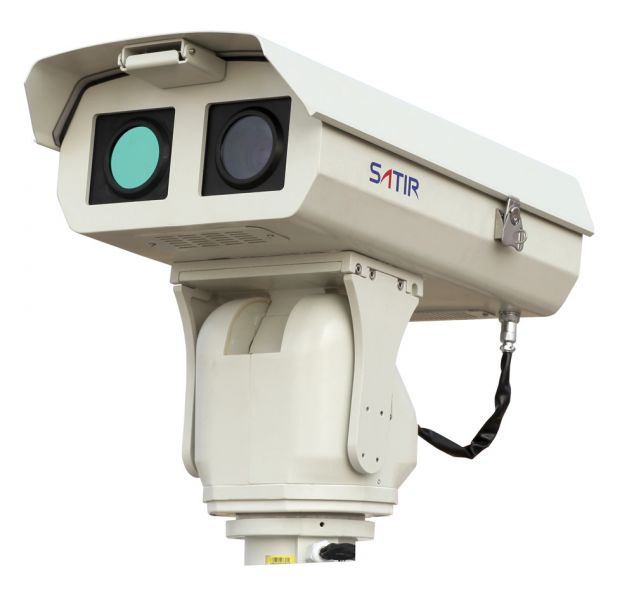

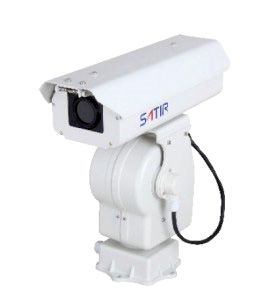

The CK350-W has a professional outdoor shield protection and PTZ support. The PTZ mechanism on the CK350-W allows the user to rotate the camera 360° and to tilt from -85°C -+20°. This can drastically increase situational awareness. The PTZ comes with 80 pre-set positions and with the NVS system it can auto scan an area continuously.  It can be powered by solar power which is optional or a regular power supply of 12VDC. It has a quick start-up time of ≤20s. It has encapsulation of IP66 which means it is fully protected against dust and from high power jets of water, making it suitable for wet or dusty environments.  It also has resistance against shock and vibrations.

Features:
• 384×288 IR Detector
• High Accuracy
• Wide Temperature measurement range
• NVS System Software
• Wi-Fi Data Transfer
• Professional outdoor shield & PTZ Support
• Compatible with Surveillance Network
• Analysis Functions
• IP66
