SATIR CK350-VN - IR Temperature Measurement Camera for Precise Control & Monitoring

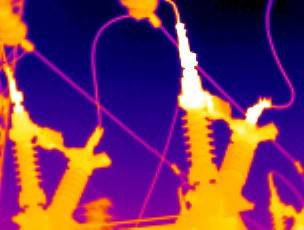

The SATIR CK350-VN is an infrared temperature measurement camera for precise control and monitoring external facilities such as substations.
The CK350-VN has a 384x288 IR detector which generates 110592 pixels to give a clear, detailed visual. The CK350-VN has a wide temperature range of -20~250°C, up to 2000°C with a temperature measurement accuracy of ±2°C or 2% of a reading.
The CK350-VN has a digital camera which automatically focuses and has optical zoom of 23x. This is a great feature, if the user is monitoring a large area such as a forest allowing them to zoom on certain points of interest. For example, perhaps a part of the forest area that is prone to fires reigniting after a forest fire. Multiple palette modes are available which allows the user to select the palette that is most suitable to their application.
The CK350-VN has various over-temperature alarm modes that can response accordingly depending on the type application. The CK350-VN has powerful analysis functions  such as hot/cold spot capture, isotherm area, polygon area, histogram, spot, trend, line analysis.
The CK350-VN has a professional outdoor shield protection and PTZ support. It can be powered by solar power which is optional or a regular power supply of 220V AC. It has a quick start-up time of ≤20s. It has encapsulation of IP66 which means it is fully protected against dust and from high power jets of water, making it suitable for wet or dusty environments.  It also has resistance against shock and vibrations.  The following optional lenses are available on request; 7.2°x5.4°/75mm.

Features:
• 384×288 IR Detector
• High Accuracy
• Wide Temperature measurement range
• Digital Camera with matched FOV & coaxial
• Professional outdoor shield & PTZ Support
• Compatible with Surveillance Network
• Powerful Analysis Functions
• IP66
