EE870 Zapouzdřený OEM modul snímače CO2

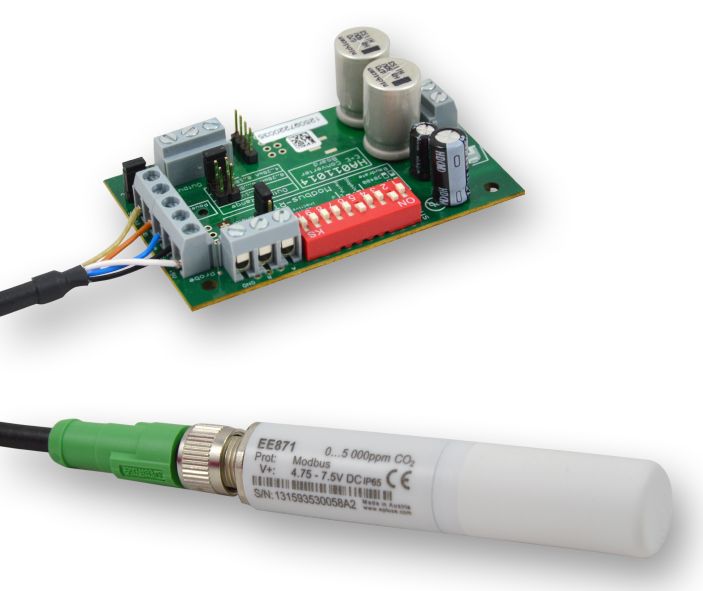

The modular E+E CO2 transmitter EE870 is designed for easy  integration  into  OEM  equipment  for  demanding  applications. EE870 consists of a CO2 sensing probe, a conversion board and a connection cable. The  interchangeable  CO2  probe  incorporates  the  dual
wavelength  NDIR  CO2  sensor,  which  compensates  for  ageing effects, is highly insensitive to pollution and offers outstanding long term stability. A multiple point CO2 and temperature adjustment leads to excellent measurement accuracy  over  the  entire  temperature  working  range,  ideal for use in agriculture and outdoors.

The IP65 enclosure of probe and the replaceable PTFE filter   offer   excellent   protection   in   harsh,   polluted   environment. The compact size, the M12 connector and the optional mounting flange allow for fast probe installation,  replacement  or  removal  during  the  cleaning  of  the  site, for instance a stable or an incubator. With the optional radiation shield, the probe can be also installed outdoors.


The measured data range of up to 5 % CO2 (50,000 ppm) is available on the analog outputs of the conversion board. Several voltage and current ranges can be selected with jumpers. Additionally, the data is available on the Modbus RTU interface, which can be configured by the user with DIP switches on the board. An optional kit facilitates easy configuration and adjustment of the probe.

Typical Applications
• Greenhouses and livestock barns
• Fruit and vegetable storage
• Hatchers and incubators
• Outdoor CO2 monitoring

Key Features
• Auto-calibration
• Outstanding long-term stability
• Temperature compensation
• Interchangeable probe
• Analogue and Modbus RTU outputs
