EE23 Lehký průmyslový snímač RV+T

The  EE23  series  stands  for  multifunctionality,  highest    accuracy,  easy mounting and service.
The new IP65 water proof housing concept is based on three modules:
- back module with connectors
- middle module which accommodates the electronics
- cover module with optional display

It offers easy installation and the possibility for fast exchange of the sensor unit for service purposes.
For use in harsh industrial environments all models of the EE23 are available in a robust metal housing.
The EE23 can be employed in all common applications by choosing the appropriate housing combination.

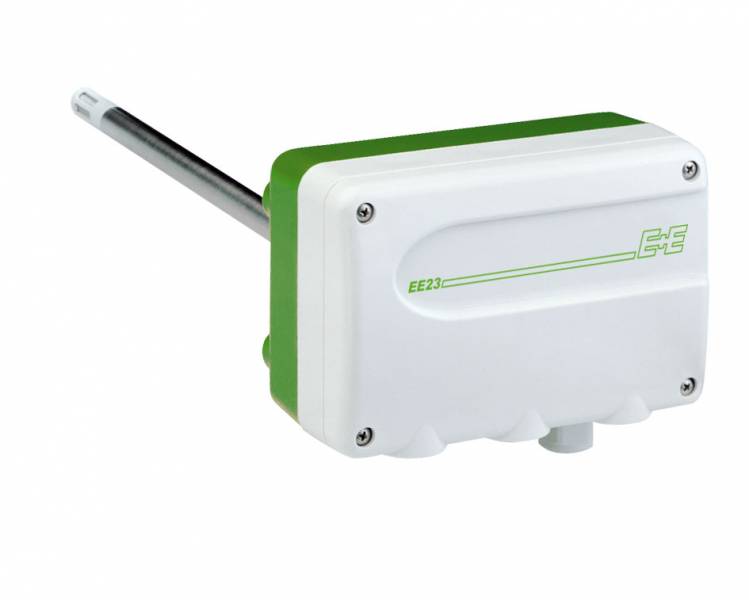

- Model A / B:   wall / duct mounting

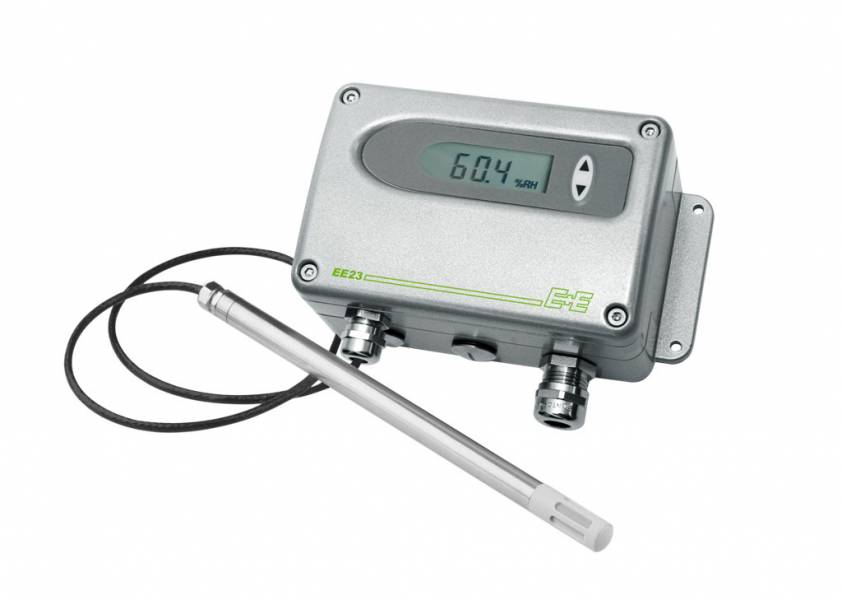

- Model C:  remote sensing probe has a working temperature  range –40...120°C (-40...248°F)
- Model G: version  with  optional  radiation  shield  is  dedicated  for outdoor and meteorological applications.

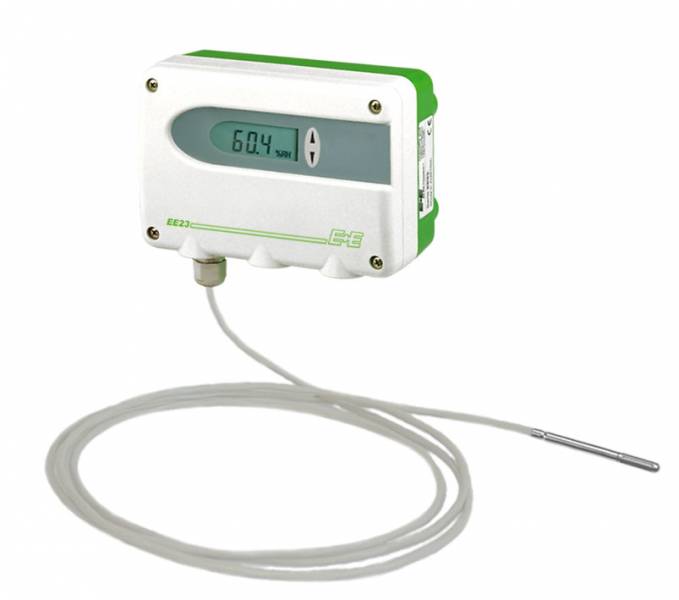

- Model H: with   remote   miniature   probe   for   concealed   mounting  (e.g. in museums) or in tight spaces.

The  high  quality  HC  series  humidity  sensor  elements  and  newest  microprocessor technology are the guarantee for:
    -  best accuracy over the whole working range
    -  display  and  output  of  relative  humidity,  temperature,  dew point and frost point temperature
    -  small hysteresis
    -  excellent long term stability
    -  highest resistance to pollutants.

Easy configuration of the humidity and temperature outputs is made possible by the innovative design of the EE23 electronics. One can
select between various current or voltage output signals.
One can very easily perform a two point humidity and temperature adjustment on site by using two push buttons on the PCB.
The    three    modules    concept    makes    it    also    possible    to    perform  a  loop  calibration  according  to  FDA  (Food  and  Drug
Administration) recommendations.
Further   options   are   the   integrated   display,   cable   outlets   via   connectors, sensor coating and an hygrostate output for control and
alarm purposes.
